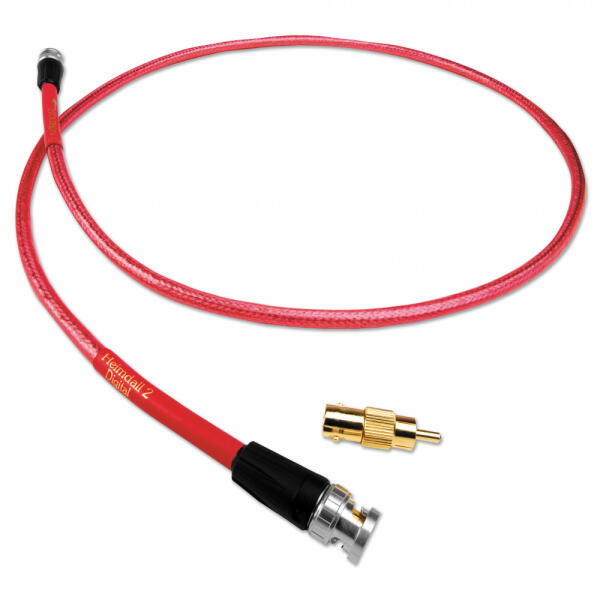

Nordost Heimdall 2 digitális interconnect kábel /1 méter, 75 Ohm/
Nordost Heimdall 2 digitális interconnect kábel /1 méter, 75 Ohm/
359 000 Ft
Ajánlataink Nordost Heimdall 2 digitális interconnect kábel /1 méter, 75 Ohm/ termékre
Ajánlataink a termékre
Paraméterek, termékleírás - Nordost Heimdall 2 digitális interconnect kábel /1 méter, 75 Ohm/
Galéria - Nordost Heimdall 2 digitális interconnect kábel /1 méter, 75 Ohm/
Termékleírás
| Gyártó | Nordost |
| Csatlakozás típusa | RCA-RCA (BNC adapterrel) |
| custom_label_4 | luxus-highend |
Hibát talált a leírásban vagy az adatlapon? Jelezze nekünk!
75 Ohm impedanciájú koax digitális átjátszó kábel, BNC csatlakozóval szerelve. BNC-RCA átalakítókkal kiegészítve. Szigetelés: Fluorozott etilén propilén (FEP) Szerkezet: Precíziós Micro Mono-Filament koaxiális kivitel
vezetékek: 1 x 20 AWG
Anyaga: 60 Micron ezüstözött 99,99999% szilárd-core OFC
Impedancia: 75 Ohm
Digital data transfer demands precise impedance matching in both cable and connectors. Manufactured entirely in the USA, the Heimdall 2 S/PDIF and AES/EBU cables are optimized for digital signal transfer and use a silver-plated OFC solid core conductor suspended in our proprietary, precision Dual Mono-Filament construction. In the S/PIDF cable, this technology is combined with combination BNC/RCA connectors, providing a true 75 Ohm signal path which answers the demand for the precise tolerance needed for clocking and dealing with digital output. Whereas the AES/EBU cable is constructed with impedance matched XLR connectors, providing a true 110 Ohm signal path for digital data which results in clearly audible sonic and musical benefits. The result is an ultra high-speed, low-loss cable specifically designed to deliver the best possible performance from today’s high-resolution digital audio sources. They may only be ones and zeros but poor impedance matching has a dramatic impact on the accuracy with which they are passed from one electronic device to another. Nordost’s ultra-close tolerance digital transfer solutions deliver the goods, sonically and musically. 75 OHM SPECIFICATIONS Insulation: Fluorinated Ethylene Propylene (FEP)
Construction: Mechanically tuned spacing, length and Dual Mono-Filament, co-axial design
Conductors: 1 x 20 AWG
Material: Silver-plated 99.99999% solid core OFC
Capacitance: 15.0pF/ft
Impedance: 75 Ohm
Overall Shield Coverage: 97%
Velocity of Propagation: 88%
Termination: Gold-plated true 75 Ohm Neutrik BNC. Gold-plated BNC to RCA adapter included.
![]()
vezetékek: 1 x 20 AWG
Anyaga: 60 Micron ezüstözött 99,99999% szilárd-core OFC
Impedancia: 75 Ohm
Digital data transfer demands precise impedance matching in both cable and connectors. Manufactured entirely in the USA, the Heimdall 2 S/PDIF and AES/EBU cables are optimized for digital signal transfer and use a silver-plated OFC solid core conductor suspended in our proprietary, precision Dual Mono-Filament construction. In the S/PIDF cable, this technology is combined with combination BNC/RCA connectors, providing a true 75 Ohm signal path which answers the demand for the precise tolerance needed for clocking and dealing with digital output. Whereas the AES/EBU cable is constructed with impedance matched XLR connectors, providing a true 110 Ohm signal path for digital data which results in clearly audible sonic and musical benefits. The result is an ultra high-speed, low-loss cable specifically designed to deliver the best possible performance from today’s high-resolution digital audio sources. They may only be ones and zeros but poor impedance matching has a dramatic impact on the accuracy with which they are passed from one electronic device to another. Nordost’s ultra-close tolerance digital transfer solutions deliver the goods, sonically and musically. 75 OHM SPECIFICATIONS Insulation: Fluorinated Ethylene Propylene (FEP)
Construction: Mechanically tuned spacing, length and Dual Mono-Filament, co-axial design
Conductors: 1 x 20 AWG
Material: Silver-plated 99.99999% solid core OFC
Capacitance: 15.0pF/ft
Impedance: 75 Ohm
Overall Shield Coverage: 97%
Velocity of Propagation: 88%
Termination: Gold-plated true 75 Ohm Neutrik BNC. Gold-plated BNC to RCA adapter included.
